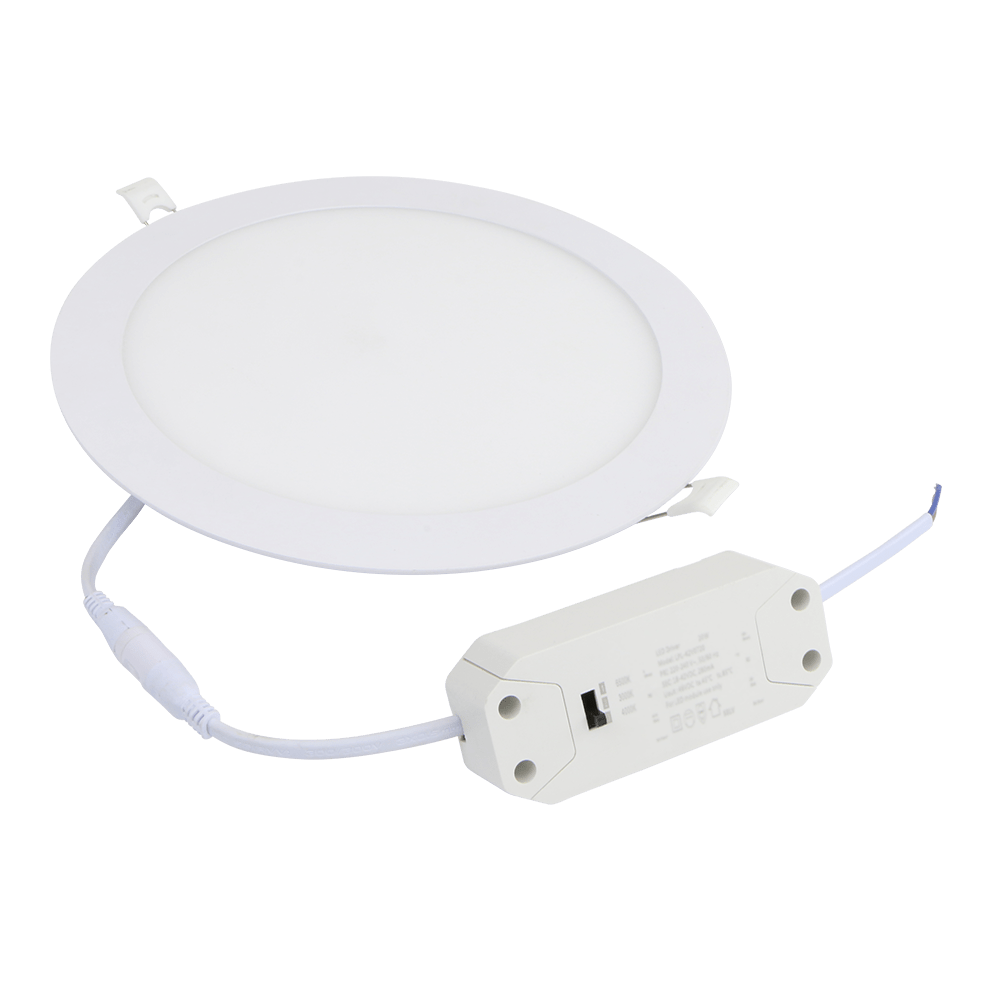

LED Orbit 12W CCT Selectable Slimline Flat Panel Downlight

 ORB12 CCT circular downlights provide an output of 900lm and are ideal for cost sensitive projects.

• Ultra slim profile to fit virtually any ceiling void.
• Selectable CCT – 3000K, 4000K, 6000K.
• Emergency option available.
• Die-cast aluminium body and TP(b) diffuser.
• Supplied c/w pre-wired remote driver with plug and socket connectors.

Key Features:

• Color Temperature Selection: Adapt your lighting with ease by selecting from 3000K (Warm White), 4000K (Cool White), and 6000K (Daylight) options to suit any mood or setting.
• Ultra Slim Design: Featuring an ultra-slim downlight and driver, the ORBIT CCT 12W fits seamlessly into any ceiling, providing a sleek and unobtrusive lighting solution.
• Durable Construction: The die-cast aluminium body and TP(b) diffuser ensure robustness and longevity, while delivering excellent light diffusion for a bright and even illumination.
• Wide Operating Temperature Range: Engineered to perform efficiently in temperatures ranging from -10°C to 50°C, ensuring reliable operation in various environments.
• High Lumen Output and Efficacy: With a lumen output of 900 lm and an efficacy of 75 lm/W, the ORBIT CCT 12W LED Downlight provides bright and efficient lighting.
• 3-Year Warranty: Backed by a 3-year warranty, offering peace of mind and reliable performance.

The ORBIT CCT 12W LED Downlight is perfect for enhancing lighting in commercial spaces and retail environments, its adjustable colour temperature and high lumen output make it a versatile choice for any lighting requirement.

Transform your lighting experience with the ORBIT CCT 12W LED Downlight. Combining sleek design, energy efficiency, and superior performance, it is the ideal lighting solution for any space. Order now from Red Arrow Electrical and enjoy high-quality illumination tailored to your needs.

Installation Instructions

1. It is recommended that an air gap of approximately 25mm is maintained around the fitting to ensure the maximum lifespan of the fitting.

12. 3. 4. Ensure the mains supply is switched off before commencing any work.

Select the suitable location(s) for the downlight(s)

Mark the appropriate cut-out positions on the ceiling. Check the locations of any cables, pipes, or other building services before drilling / cutting the

ceiling. Note the cut-out dimensions for your fitting on the previous page and complete the ceiling preparation. It is advisable to double check these.

5. 6. 7. 8. 9. 10. Safely connect the input cable of the LED driver to the supply cable.

Select the desired colour temperature on the driver with the switch.

Connect the LED downlight to the LED driver using the male / female connector.

Test the circuit electrically and ensure all fittings are working correctly.

9. Squeeze the springs upwards, insert the downlight into the ceiling cut-out and release the springs.

Switch the power back on. Note: do not reconnect power until all connections have been made. Hot plug in can damage the LEDs and will void any

warranty.
