Tankless Water Heater with Adjustable Digital Display for Efficient Heating

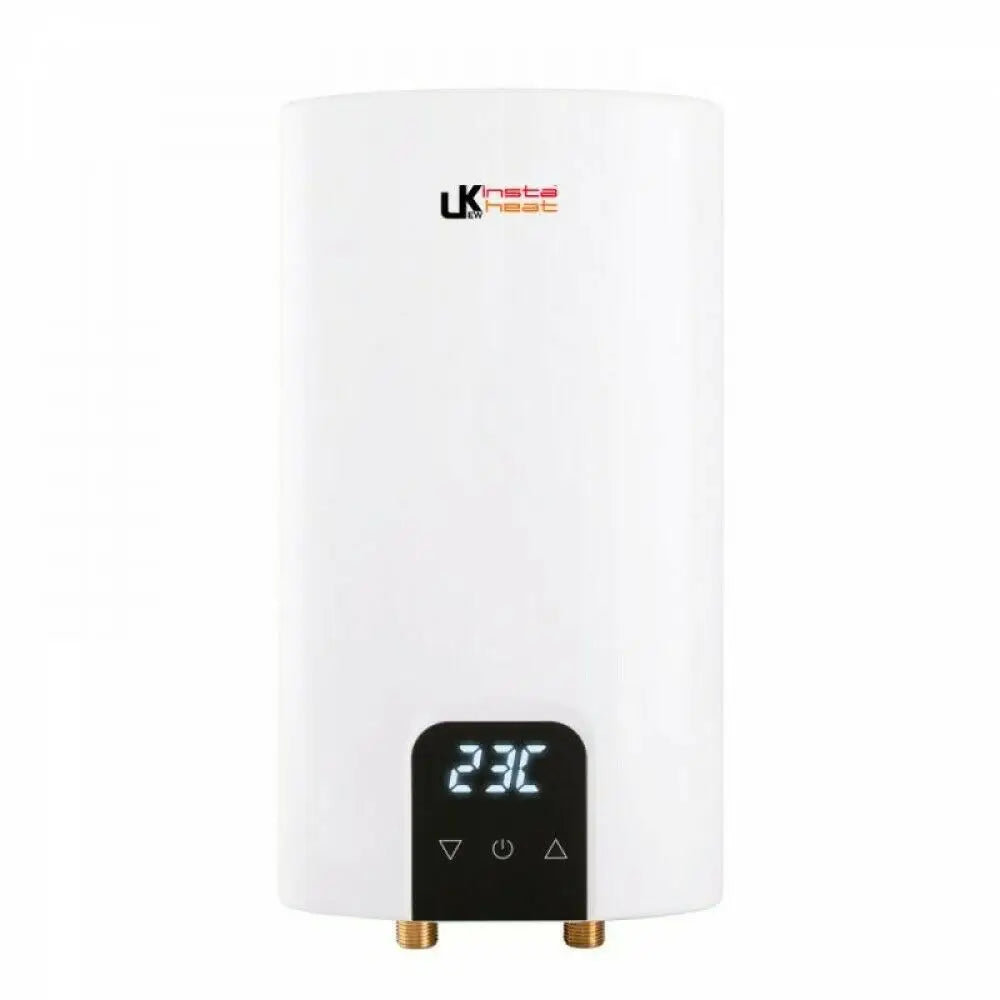

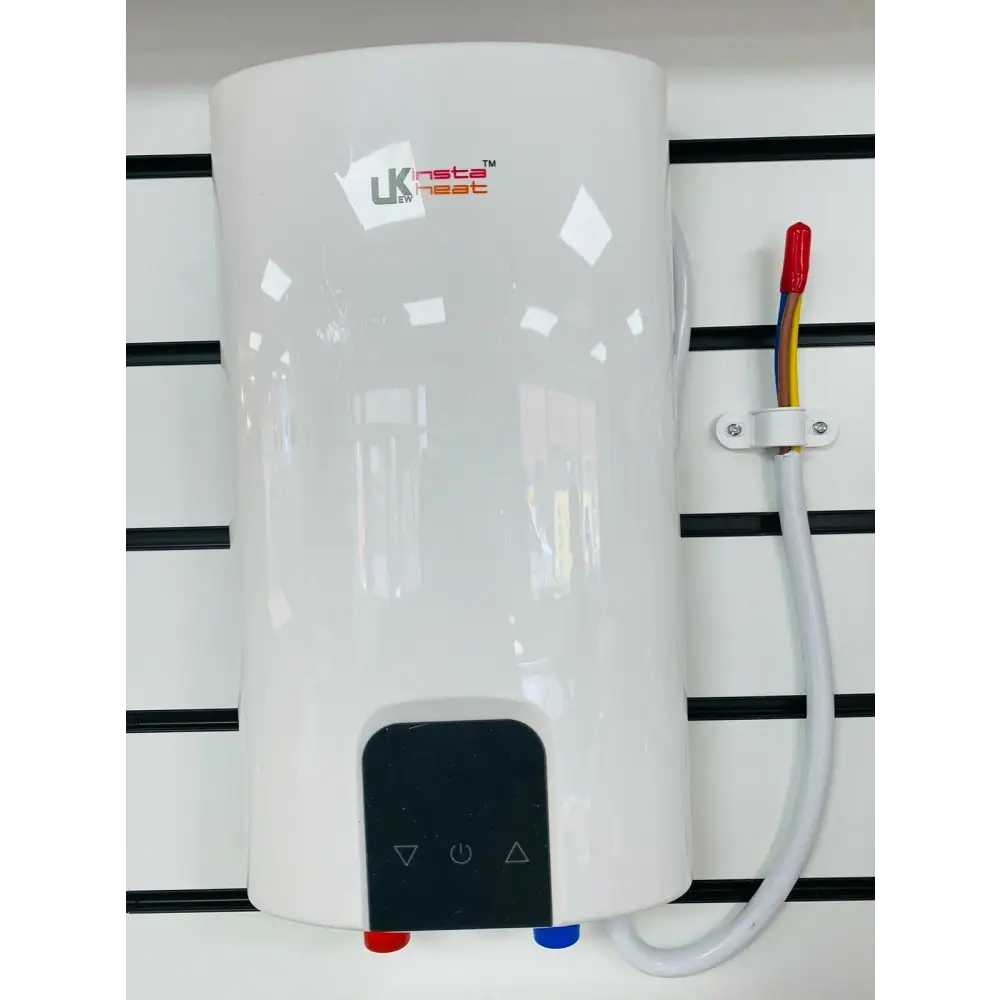

UKEW Instaheat Tankless Instant Water Heater — Multi-Point Use

Key Features

• No Storage Tank: Improves energy efficiency by eliminating standby heat loss.
• Adjustable Temperature: Digital display for precise monitoring and customisation.
• Versatile Application: Suitable for both residential and commercial installations.
• Multi-Point Use: Capable of supplying multiple outlets, such as showers and sinks, simultaneously.
• Safety Features: Includes automatic shut-off, overheating protection, and anti-scald functionality.

Available Sizes

• 6.5 kW: Suitable for smaller households or single-point use.
• 9 kW: Balanced option for medium-sized homes or dual outlets.
• 11 kW: Designed for larger properties or light commercial use.
• 13.5 kW: Ideal for heavy-duty commercial settings or large residences with high hot-water demand.

Technical Specifications

Type: Instantaneous (tankless) water heater
Outlets: One or two
Installation: Point-of-use

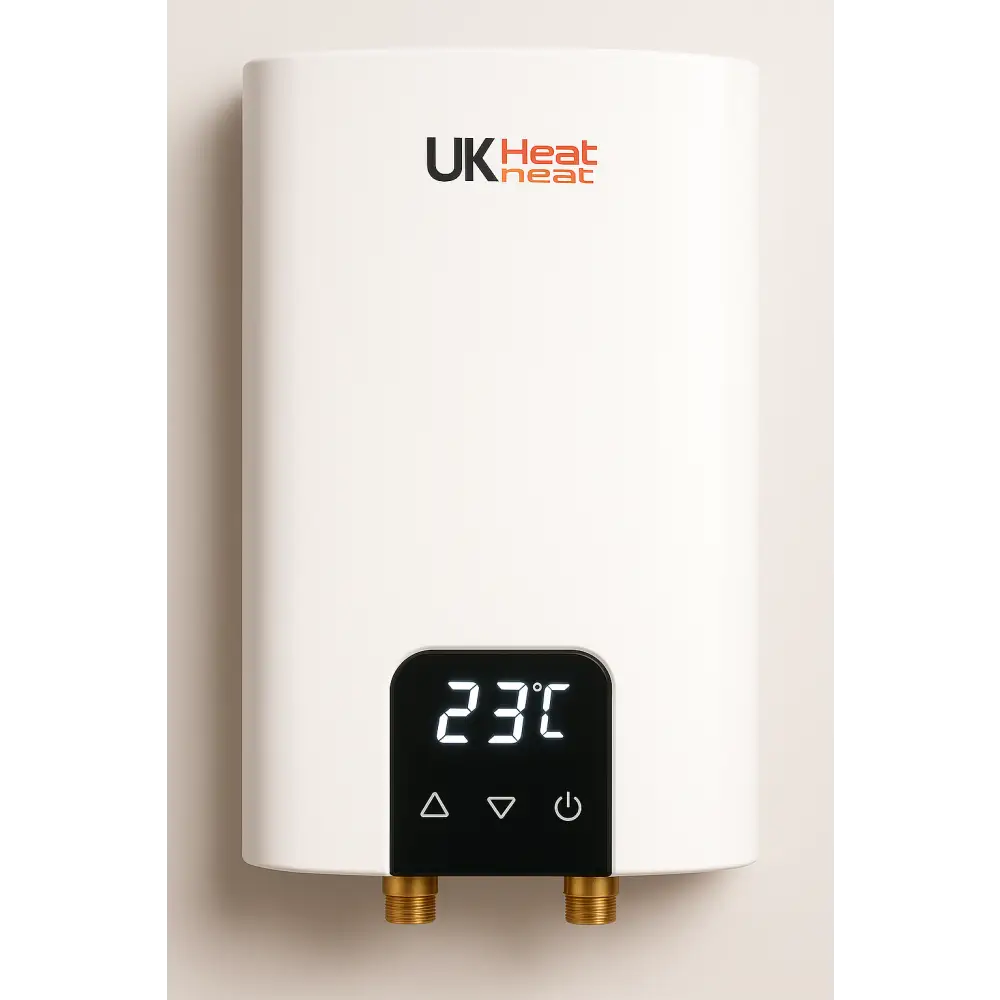

Display: LED digital screen
Safety: Leakage and overheat protection
Additional Features: Built-in pressure relief valve, automatic memory function
Power Options: 6.5 kW / 9 kW / 11 kW / 13.5 kW
Voltage: 220–240 V
Circuit Breaker: 50 A required
Wiring: 6 mm²
Default Temperature: 50°C
Overheat Protection: 60°C
Thermal Cut-Out: 95°C
Activation Flow Rate: Minimum 1.5 L/min
Operating Water Pressure: 0.02–0.6 MPa

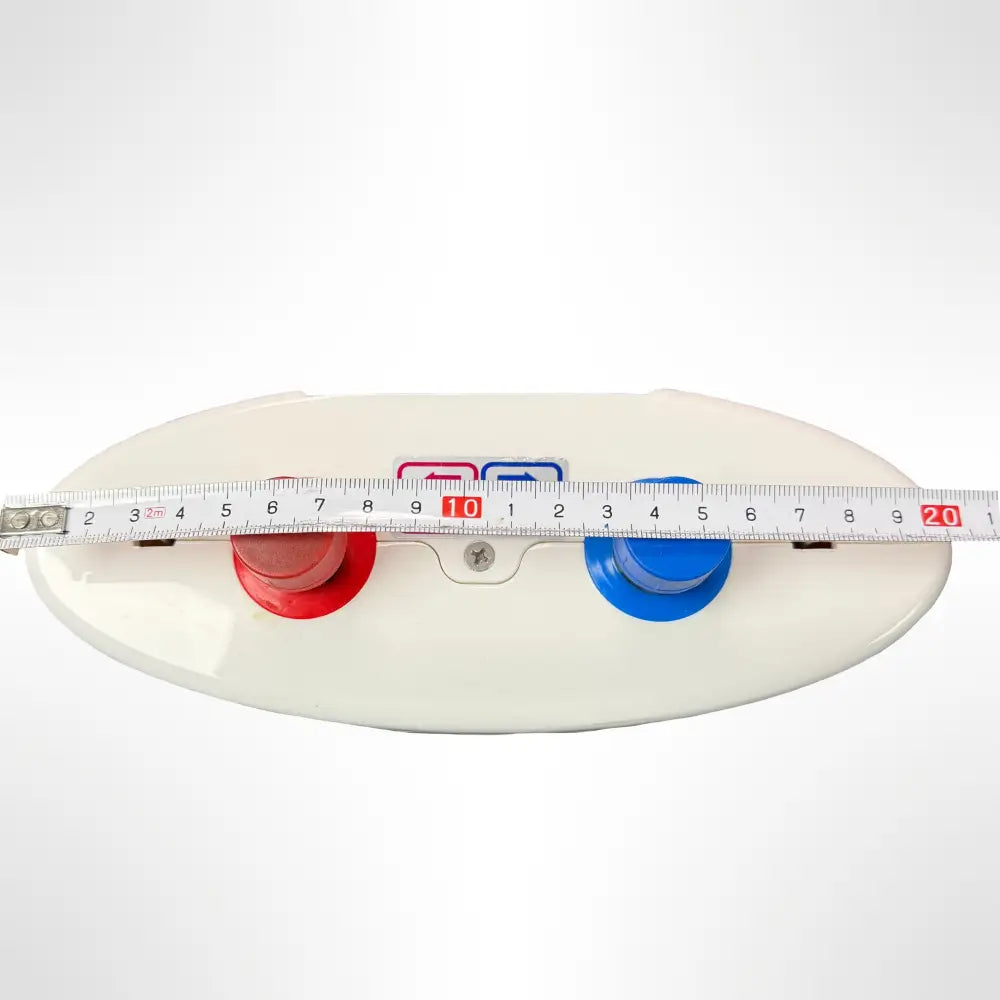

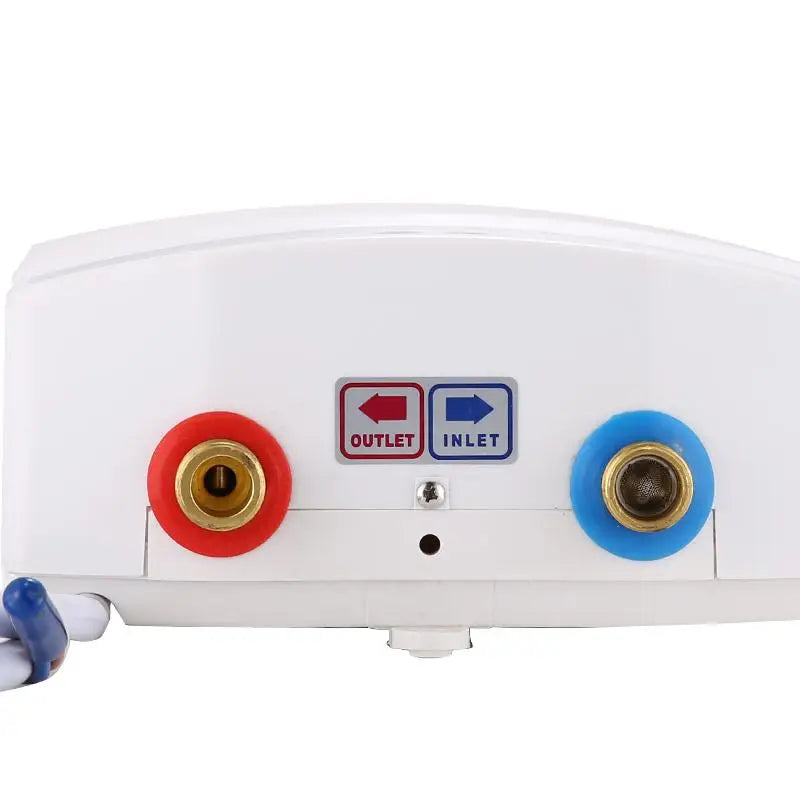

Pipe Connection: ½" copper

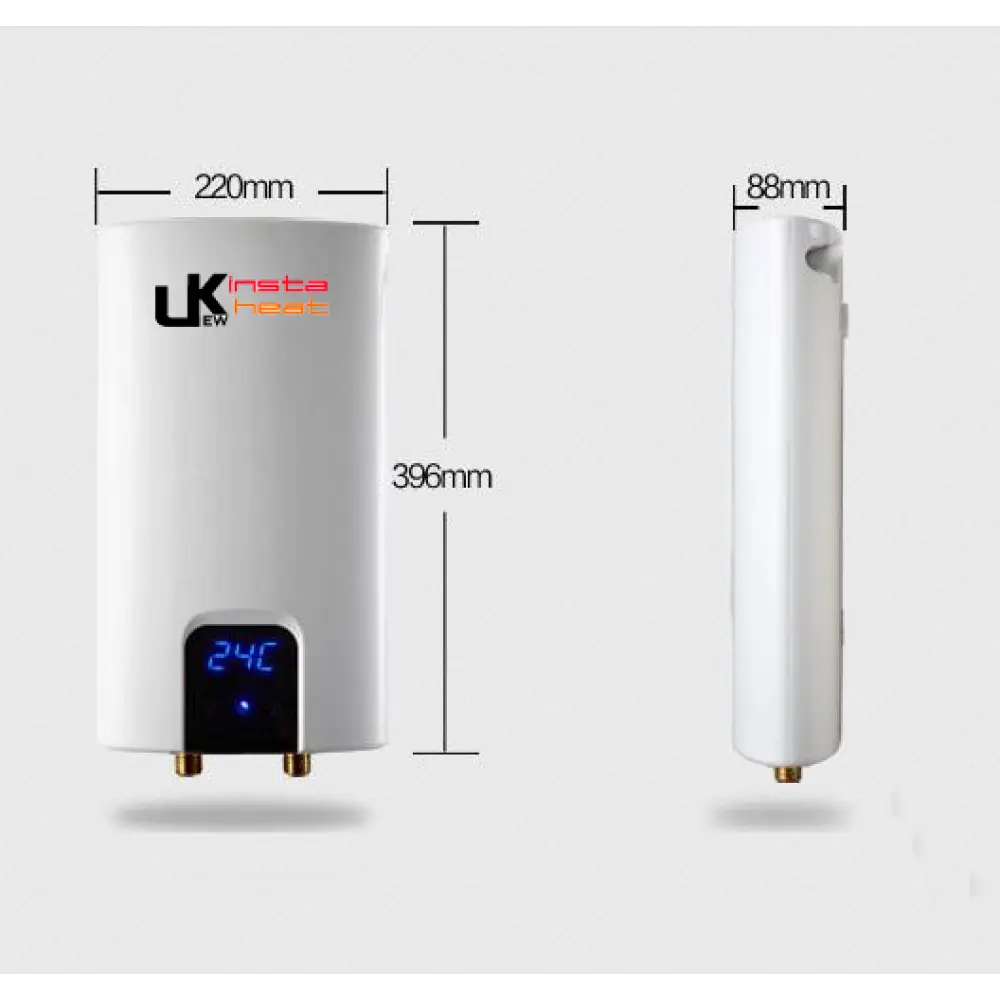

Dimensions: 396 × 220 × 88 mm

Usage Guidance

Water temperature depends on the incoming mains temperature and the flow rate. Adjust the flow at the taps to achieve the desired water temperature.

Performance Overview

The 13.5 kW model is powerful enough to fill a standard bathtub and is engineered to perform efficiently across various flow rates.
It activates at a minimum flow rate of 2 L/min and can accommodate higher rates effectively. The temperature increase depends on the flow rate:

• At 2 L/min, temperature rise up to 55°C (model-dependent)
• At 5 L/min, temperature rise 37–40°C
• At 6 L/min, temperature rise 31–33°C

For instance, filling a 150-litre bathtub at 5 L/min would take around 30 minutes. The heater can raise the water temperature by up to 40°C, ensuring a comfortable bathing experience.

Why Buy It

• Proven Efficiency: Tankless design means you only heat water when needed, reducing both energy use and costs.
• Durability and Safety: Engineered with multiple protective systems to ensure long-lasting, worry-free operation.
• Reliable Hot Water Supply: Capable of serving multiple outlets at once without temperature fluctuation.
• Smart Operation: LED display and memory function make temperature control simple and precise.
• Space-Saving Design: Compact, wall-mounted construction fits easily into small areas.
• Excellent Value: Offers performance and reliability comparable to premium European brands at a more affordable price point.
